美国GSG螺纹指示规,高精度中径测量仪
螺纹量仪又被称为螺纹指示规,是当今世界上唯一的可用于在线监测螺纹产品的中经、大径、小径的量仪产品,可以用于螺纹加工中的全尺寸检测和数据采集统计,可以有效地减少产品的报废。美国GSG是全球知名的螺纹产品检测的系统测量方案提供商,可以提供螺纹量规、螺纹量仪以及其他等多种优秀的高端测量检具。
SYSTEM 21 System 21 provides for interchangeable assembly with respect to functional size only. Functional size must be measured at the maximum material limit within the length of standard gaging elements. The characteristic known as NO GO functional diameter must also be verified. This can be accomplished by using fixed limit gaging or variable gaging with functional elements. SYSTEM 21A (FOR METRIC THREADS IN ACCORDANCE WITH ANSI B1.18M) System 21A provides for interchangeable assembly with functional size verified at the maximum material limit using standard length gaging elements. This can be accomplished using fixed limit gaging or variable gaging with functional elements. System 21A also states that the minimum material limit (minimum pitch diameter) must be verified by inspecting two thread flank locations over the length of the thread. This can be accomplished by using variable gaging or thread roll snap gages with pitch diameter elements. SYSTEM 22 System 22 provides for the interchangeable assembly with functional size verified at the maximum material limit using standard length gaging elements. This can be accomplished using fixed limit gaging or variable gaging with functional diameter elements. System 22 also states that the minimum material limit (minimum pitch diameter) must be verified over the full length of the thread. This can be accomplished using variable gaging with pitch diameter elements. SYSTEM 23 System 23 provides for interchangeable assembly with functional size verified at the maximum material limit using standard length gaging elements and minimum material limit (minimum pitch diameter) must be verified over the full length of the thread. The gaging requirements for SYSTEM 22 would also apply here but in SYSTEM 23 other thread characteristics such as lead, flank angles, taper and roundness must have to be independently verified. Only thread characteristics, which are specified, will have to be inspected for SYSTEM 23 compliance. |
STC Comparator Precision Ball slide construction and constant gaging pressure assure precise reading through linear travel of the ball slide. Definitive Helical path seating and 60% peripheral contact provide functional size position within the pitch diameter tolerance assigned. Gaging Range Single frame covers a size range of #10 through 3/4". Versatile Segments are easily changed with positive mounting pin alignment. Economical Reduced gaging time compared to Go/NoGo gages . | ITC Comparator Precision Rigid construction and constant gaging pressure assure precise readings. Definitive The ITC gage reads the actual size of the pitch diameter showing its position in relation to the pitch diameter tolerance assigned. Gaging Range Single frame covers a size range of #10 through 2 1/2" , Larger frames are available up to 8" Versatile The positive alignment feature of the frame allows segments to be easily changed with positive mounting pin alignment. Economical Reduced gaging time compared to Go/NoGo gages . |

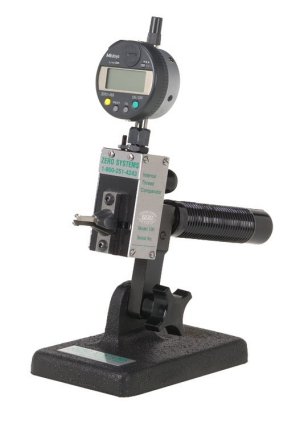

Zero System Variable Gages are available for external and internal thread applications. The external thread application are covered by the segment and Tri-Roll gage units and the internal applications by the ITC unit.

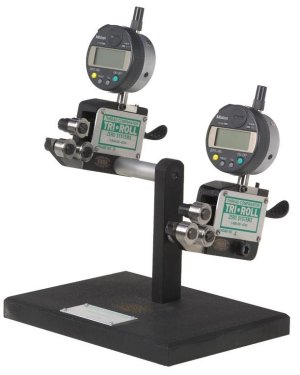

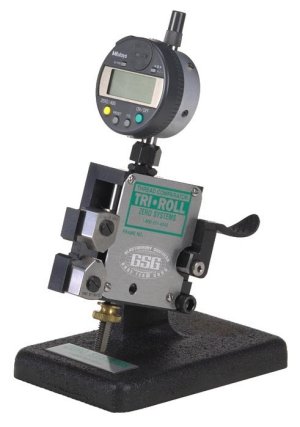

Precision Rigid construction and constant gage pressure guarantee consistent and precise readings. Qualitative Readings The Tri-Roll not only indicates whether a threaded part is within assigned limits, it also shows the exact position of the pitch diameter within a tolerance range. In addition, the Tri-Roll gages will check size and out of roundness of plain cylindrical parts. Repeatability Fixed mounting of the lower rolls assures a solid support for the work piece. Only the upper roll actuates the indicator, thereby providing repeatable readings. Easy to Set No adjustment required on the lower rolls means that no adjustment is required when changing from one thread size to another. Wide Gaging Range Both the ITC and the Tri-Roll are able to inspect a wide range of parts with a single frame. Adaptability The variable thread system can be used to measure plain diameters and can be used with the "Zero Spindle" gage system. Economical with Long Work Life The variable thread gage system provides longer life of the tooling and thus reduces cost. |
苏州斯文克精密测量设备有限公司专业代理销售美国GSG螺纹量规、螺纹量仪、API石油螺纹量规等,欢迎前来咨询。
