Pitch Diameter Gages – Straight

Pitch Diameter for Straight Threads, 0″ to 72″ Diameters

Pitch Diameter is one of the most important inspections for nearly any thread. In the past, pitch diameter was ignored as long as the ring or plug gage threaded. Now, using Gagemaker gages, you have more control over threading connections of marginal quality. The process of locating and measuring the pitch diameter takes less than a minute. This minute of inspection quickly decides the difference between good and bad.

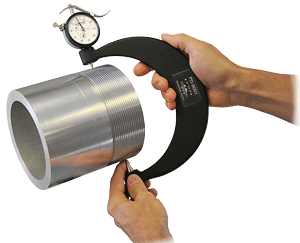

Gagemaker pitch diameter gages, commonly known as ball PD gages, verify that your part is within allowable tolerances. Improperly sized pitch diameters compromise the load capacity of your threaded components. The ball pitch diameter gages indicate the pitch diameter size of the product’s external and internal threads. The gages are adjustable within a size range and use interchangeable contact points to measure different thread forms and pitches. Setting dimensions for the pitch diameter gages are provided by the TDWIN

Range	Indicator Resolution	Indicator Travel	Description	Model
0 – 2⅜” (0 mm – 60.325 mm)	.0005”	½”	External pitch diameter gage for straight threads	PD-8000
0 – 2⅜” (0 mm – 152.4 mm)	.0001”	½”	External pitch diameter gage for straight threads with high resolution indicator	PD-8000-1
0 – 6” (0 mm – 152.4 mm)	.0005”	½”	External pitch diameter gage for straight threads	PD-8001
0 – 6” (0 mm – 152.4 mm)	.0001”	½”	External pitch diameter gage for straight threads with high resolution indicator	PD-8001-1
6” – 12” (152.4 mm – 304.8 mm)	.0005”	½”	External pitch diameter gage for straight threads	PD-8002
6” – 12” (152.4 mm – 304.8 mm)	.0001”	½”	External pitch diameter gage for straight threads with high resolution indicator	PD-8002-1
12” – 16” (304.8 mm - 406.4 mm)	.0005”	½”	External pitch diameter gage for straight threads	PD-8004
12” – 16” (152.4 mm – 406.4 mm)	.0001”	½”	External pitch diameter gage for straight threads with high resolution indicator	PD-8004-1
16” – 20” (406.4 mm – 508 mm)	.0005”	½”	External pitch diameter gage for straight threads	PD-8006
16” – 20” (406.4 mm – 508 mm)	.0001”	½”	External pitch diameter gage for straight threads with high resolution indicator	PD-8006-1
20” – 24” (508 mm - 609.6 mm)	.0005”	½”	External pitch diameter gage for straight threads	PD-8008
20” – 24” (508 mm - 609.6 mm)	.0001”	½”	External pitch diameter gage for straight threads with high resolution indicator	PD-8008-1
24” – 28” (609.6 mm - 711.2 mm)	.0005”	½”	External pitch diameter gage for straight threads	PD-8010
24” – 28” (609.6 mm - 711.2 mm)	.0001”	½”	External pitch diameter gage for straight threads with high resolution indicator	PD-8010-1
28” – 36” (711.2 mm - 914.4 mm)	.0005”	½”	External pitch diameter gage for straight threads	PD-8012
28” – 36” (711.2 mm - 914.4 mm)	.0001”	½”	External pitch diameter gage for straight threads with high resolution indicator	PD-8012-1
36” – 44” (914.4 mm - 1117.6 mm)	.0005”	½”	External pitch diameter gage for straight threads	PD-8013
36” – 44” (914.4 mm - 1117.6 mm)	.0001”	½”	External pitch diameter gage for straight threads with high resolution indicator	PD-8013-1
44” – 52” (1117.6 mm - 1320.8 mm)	.0005”	½”	External pitch diameter gage for straight threads	PD-8014
44” – 52” (1117.6 mm - 1320.8 mm)	.0001”	½”	External pitch diameter gage for straight threads with high resolution indicator	PD-8014-1
52” – 60” (1320.8 mm - 1524 mm)	.0005”	½”	External pitch diameter gage for straight threads	PD-8015
52” – 60” (1320.8 mm - 1524 mm)	.0001”	½”	External pitch diameter gage for straight threads with high resolution indicator	PD-8015-1
60” – 72” (1524 mm - 1828.8 mm)	.0005”	½”	External pitch diameter gage for straight threads	PD-8016
60” – 72” (1524 mm - 1828.8 mm)	.0001”	½”	External pitch diameter gage for straight threads with high resolution indicator	PD-8016-
